KANGA HIRE INFORMATION
Below is information about the KANGA Loader and how to use it.
As always if there is any doubt please ask.
Please see link to operators Manual here. it has information on how to use the machine and is a good place to start if you are unsure.
Please take the time to watch the basic operation and safety video before operating the Kanga.
Please see daily check sheet here.
Operations and Safety Video

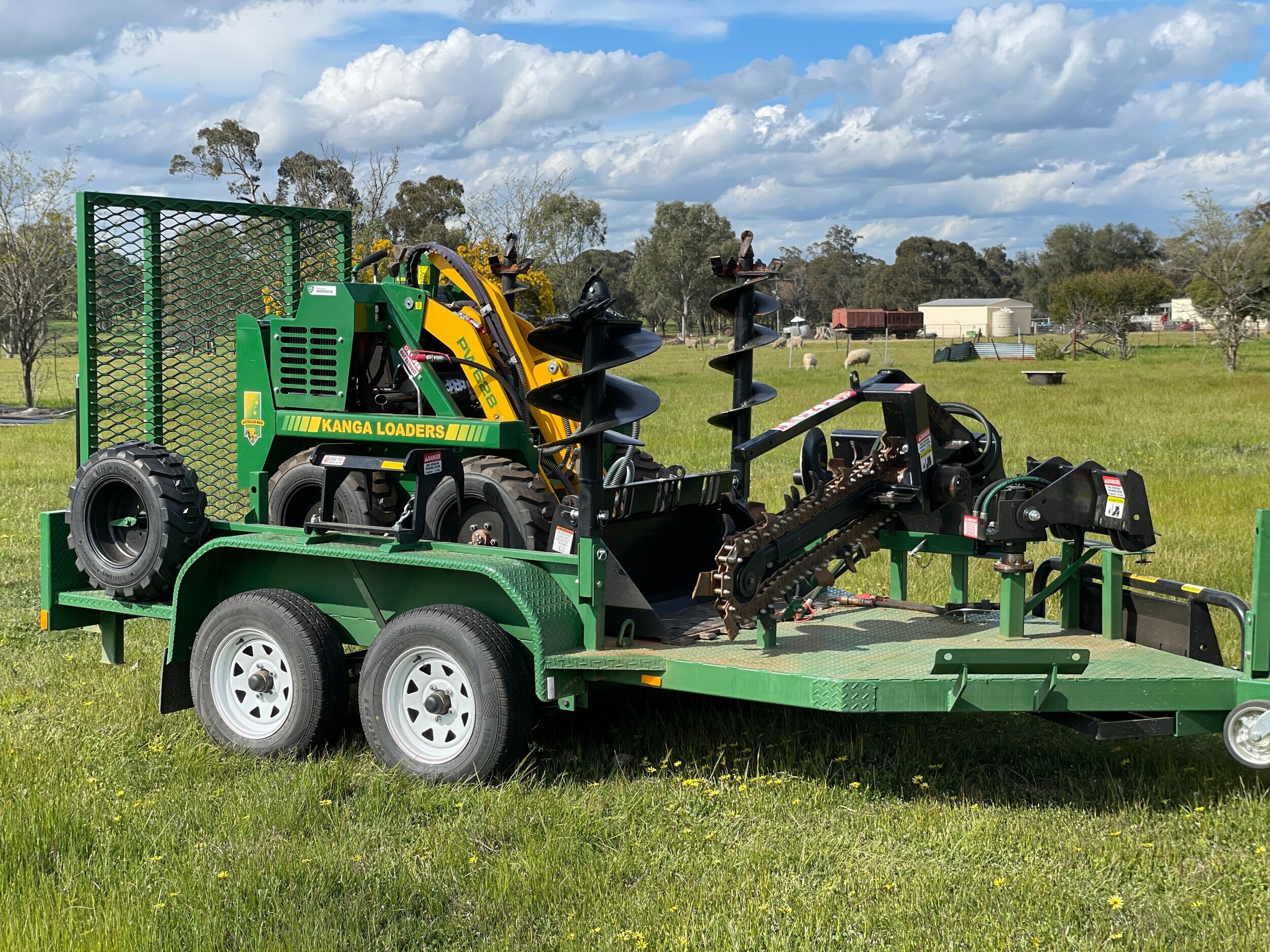

The Trailer Package, pictured above, is 3.5T rated with electric brakes. The tow vehicle will have to have electric brakes fitted and be rated to tow 3.5T.
Subject to availability, the trailer can be dropped off to you, at an extra cost, if you do not have a suitable tow vehicle. Please ask us about this when hiring if required.
Unfortunately if the person hiring the machine turns up in a unsuitable vehicle we reserve the right to refuse hire and a hire fee may still be charged.
If the person hiring only requires a couple of implements then we can organise for the KANGA to be loaded onto a smaller trailer (2T rated with mechanical brakes) making it easier to tow.
Please take note of the pictures below showing the hitching requirements and the test function of the breakaway controller.
-

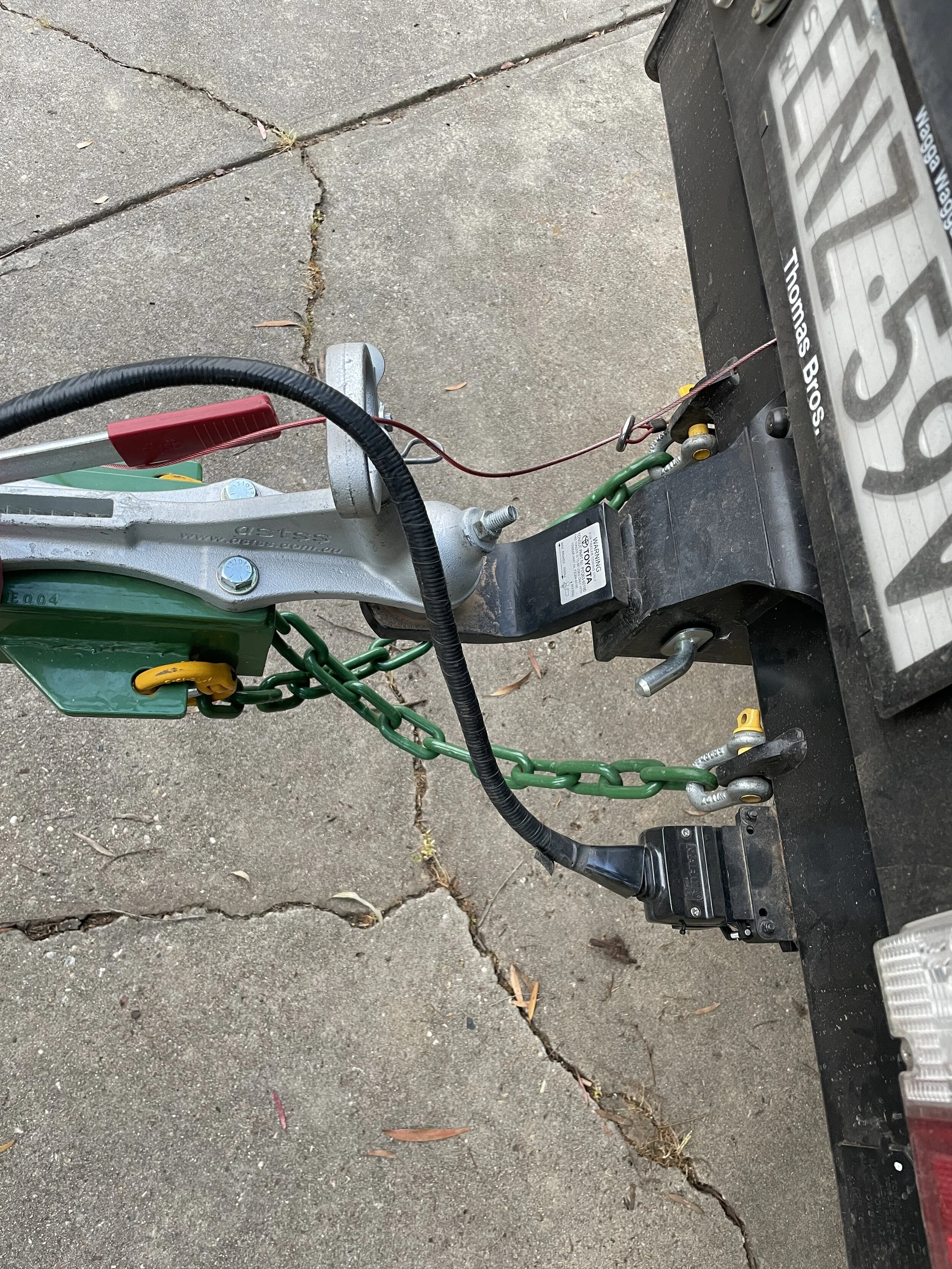

The ball hitch lowered all the way and the safety pin inserted. Handbrake off.
-
Electric trailer plug connected
-

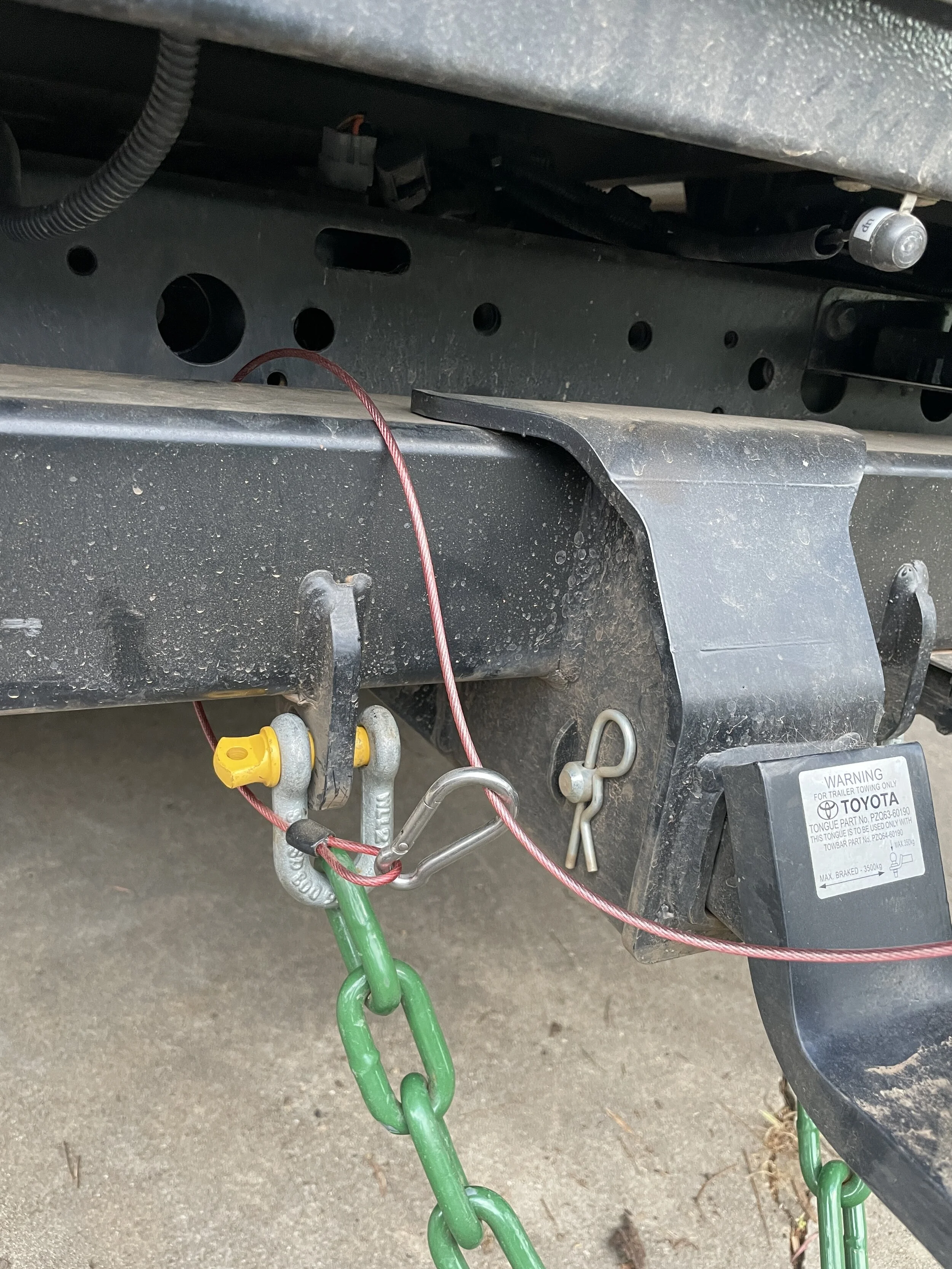

Chains crossed and both shackles connected to the tow vehicle
-
The brake away cord connected to the tow vehicle separately to the chains (only on 3.5T rated trailer)
-

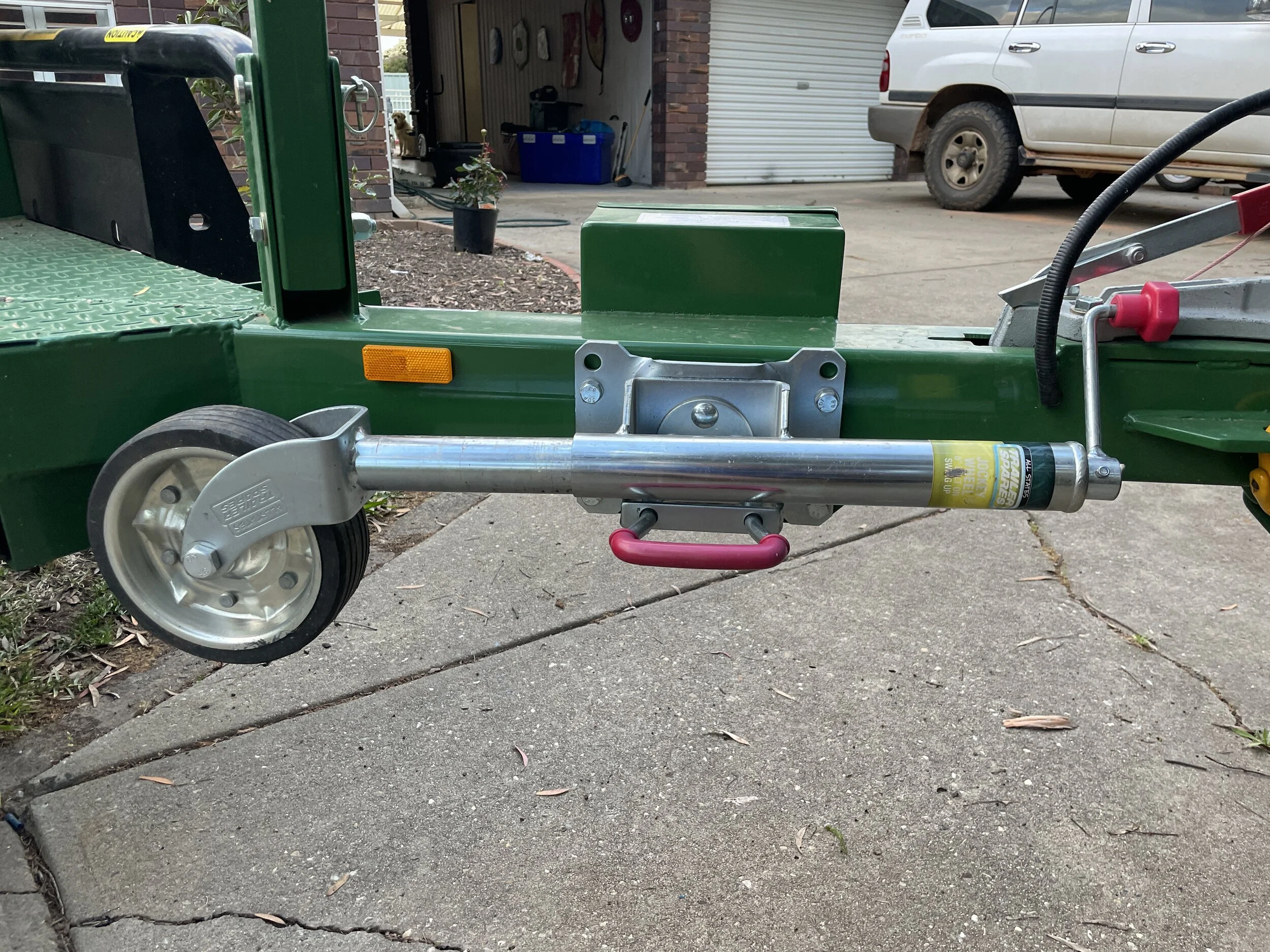

Jockey wheel pulled up out of the way
-

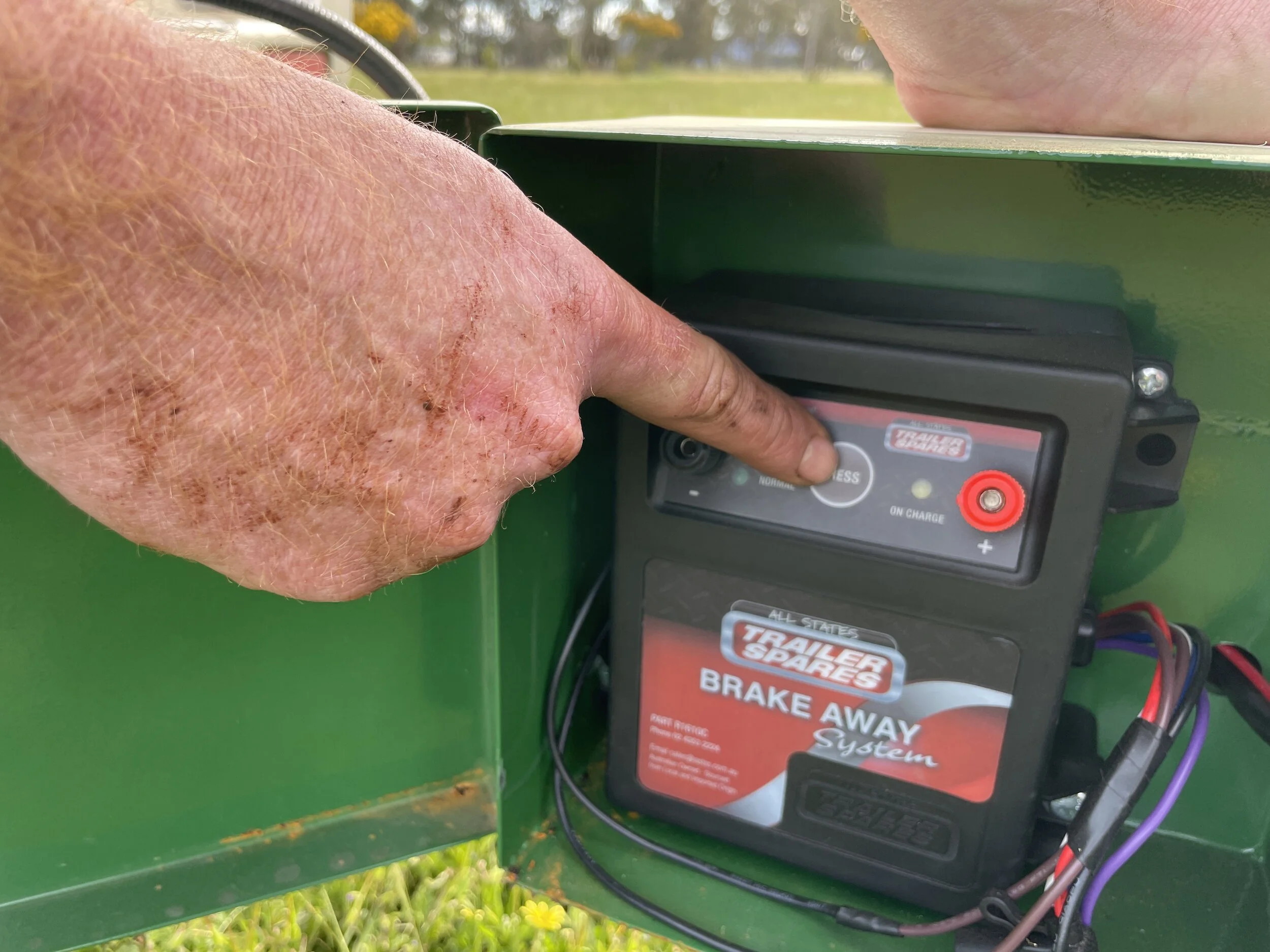

It is recommended that the brake away controller is tested before the trailer is used this is done by pressing the “press” button and the normal green light should be illuminated (only on 3.5T rated trailer).

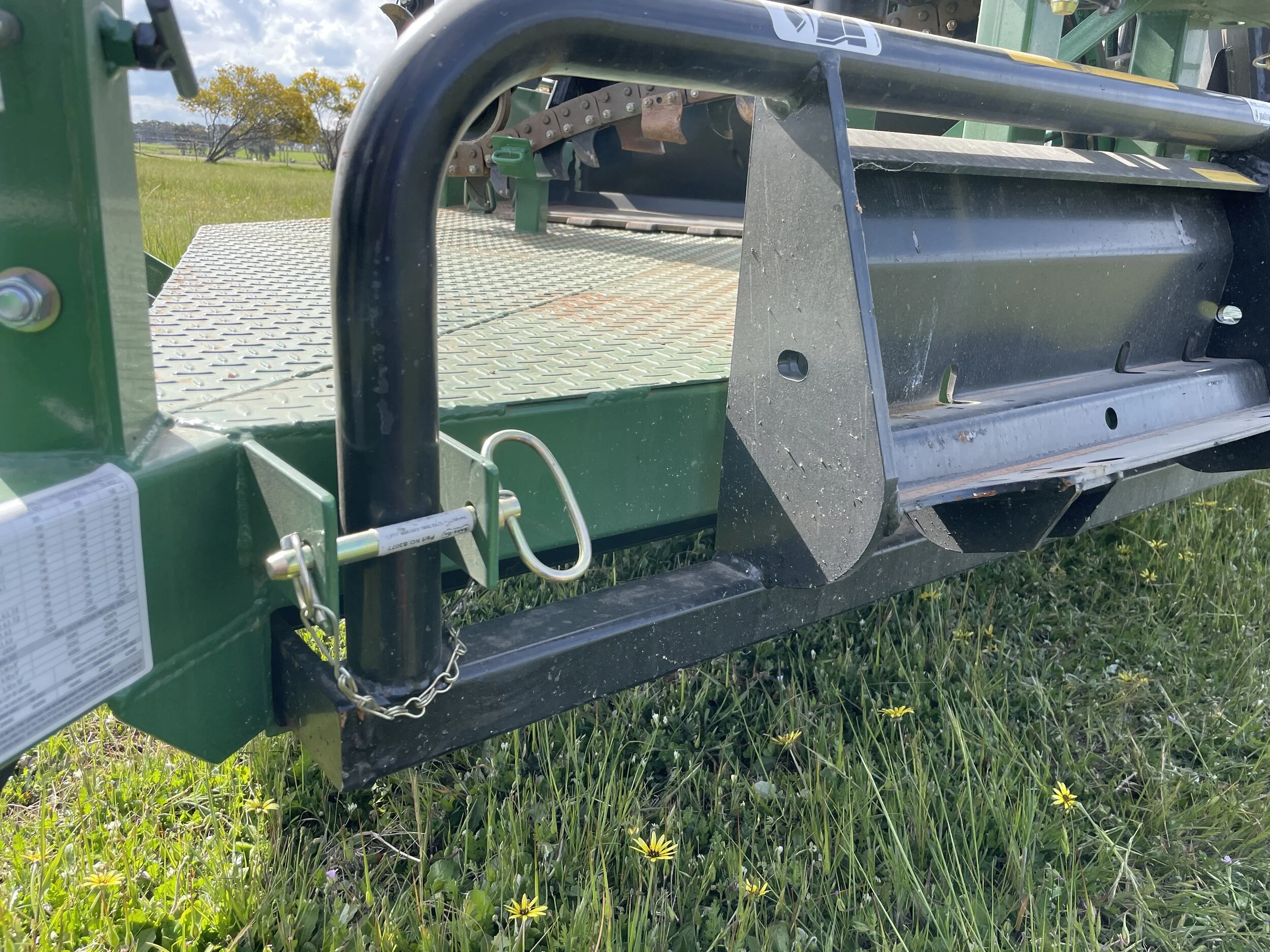

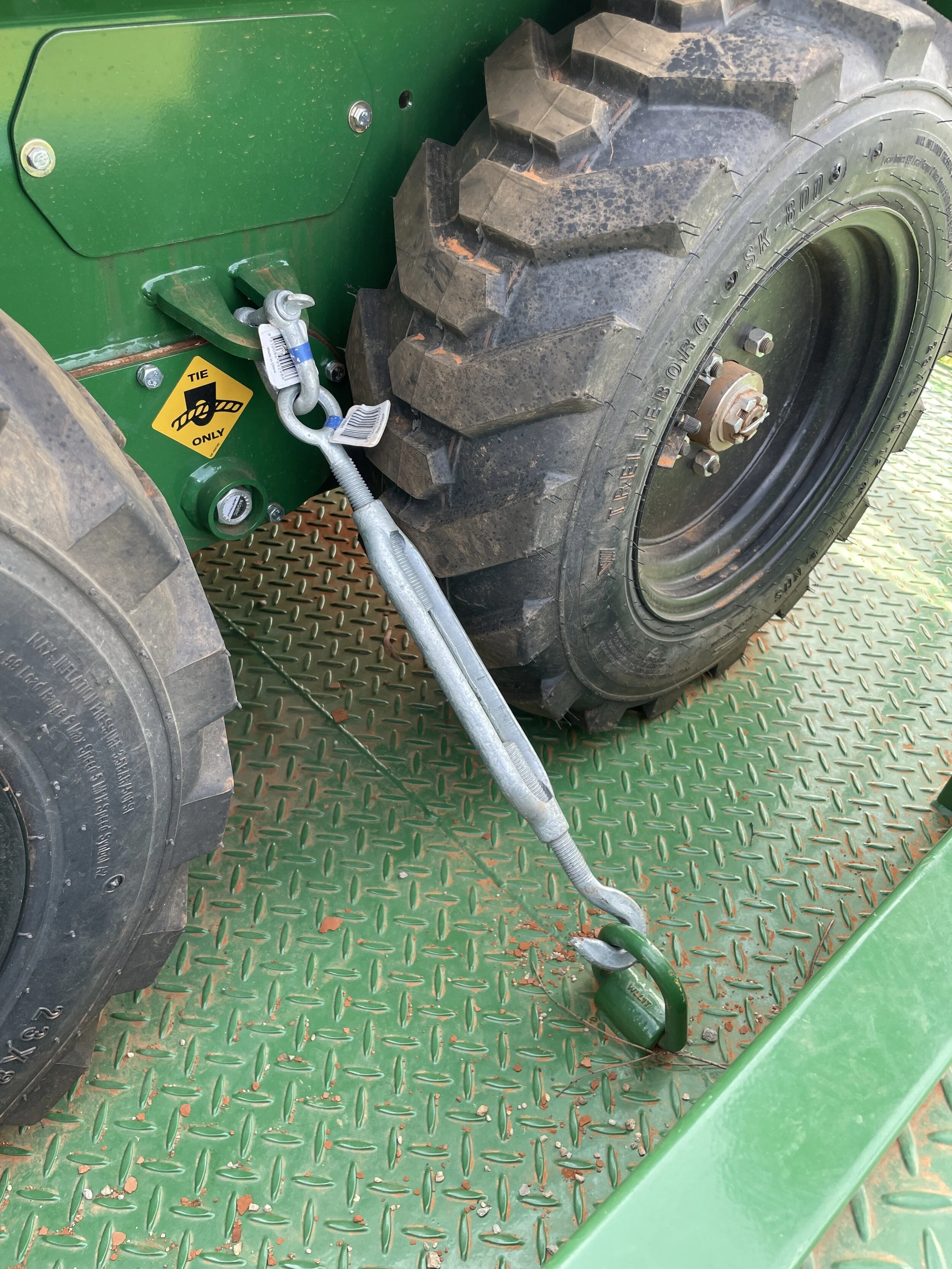

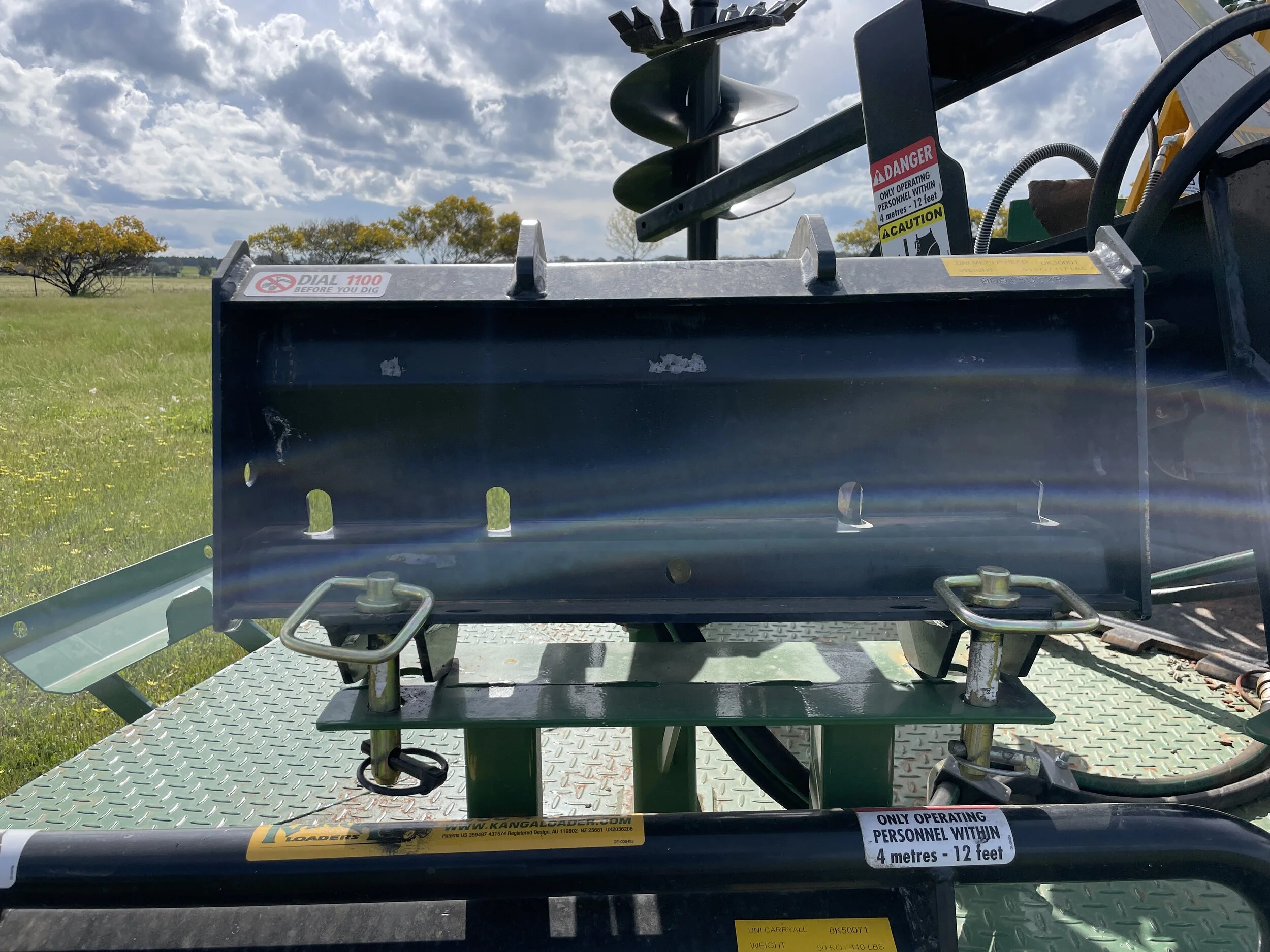

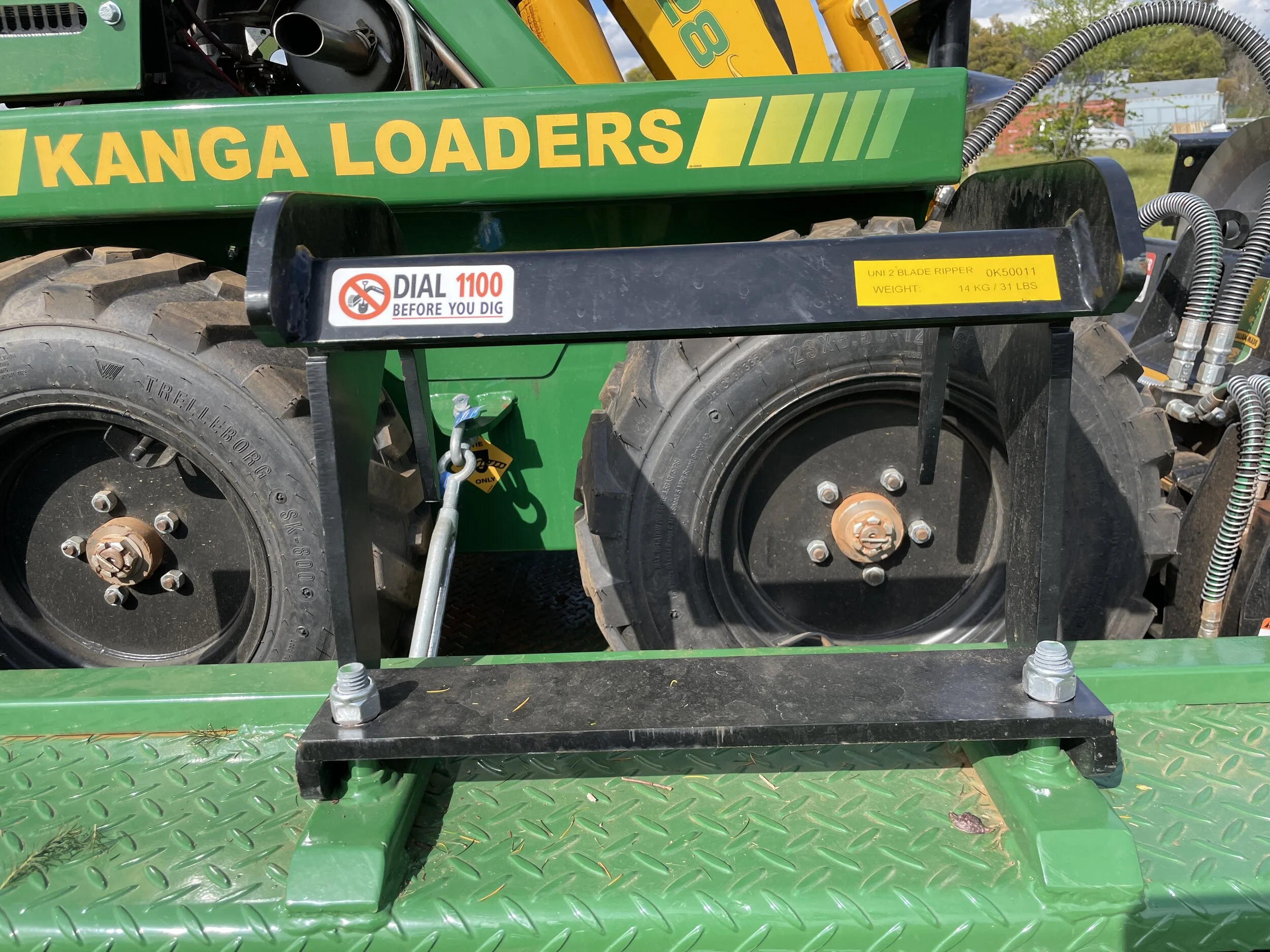

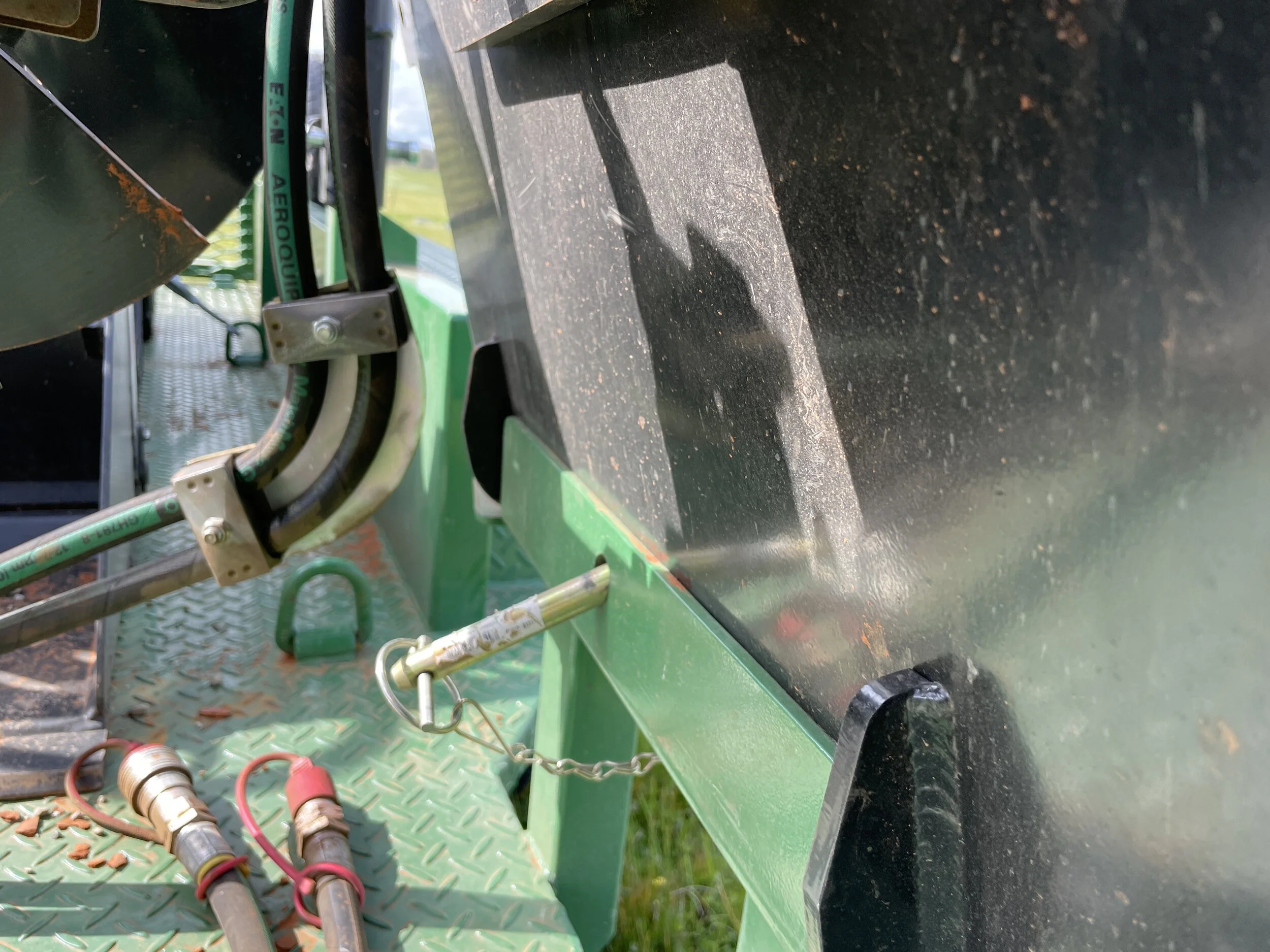

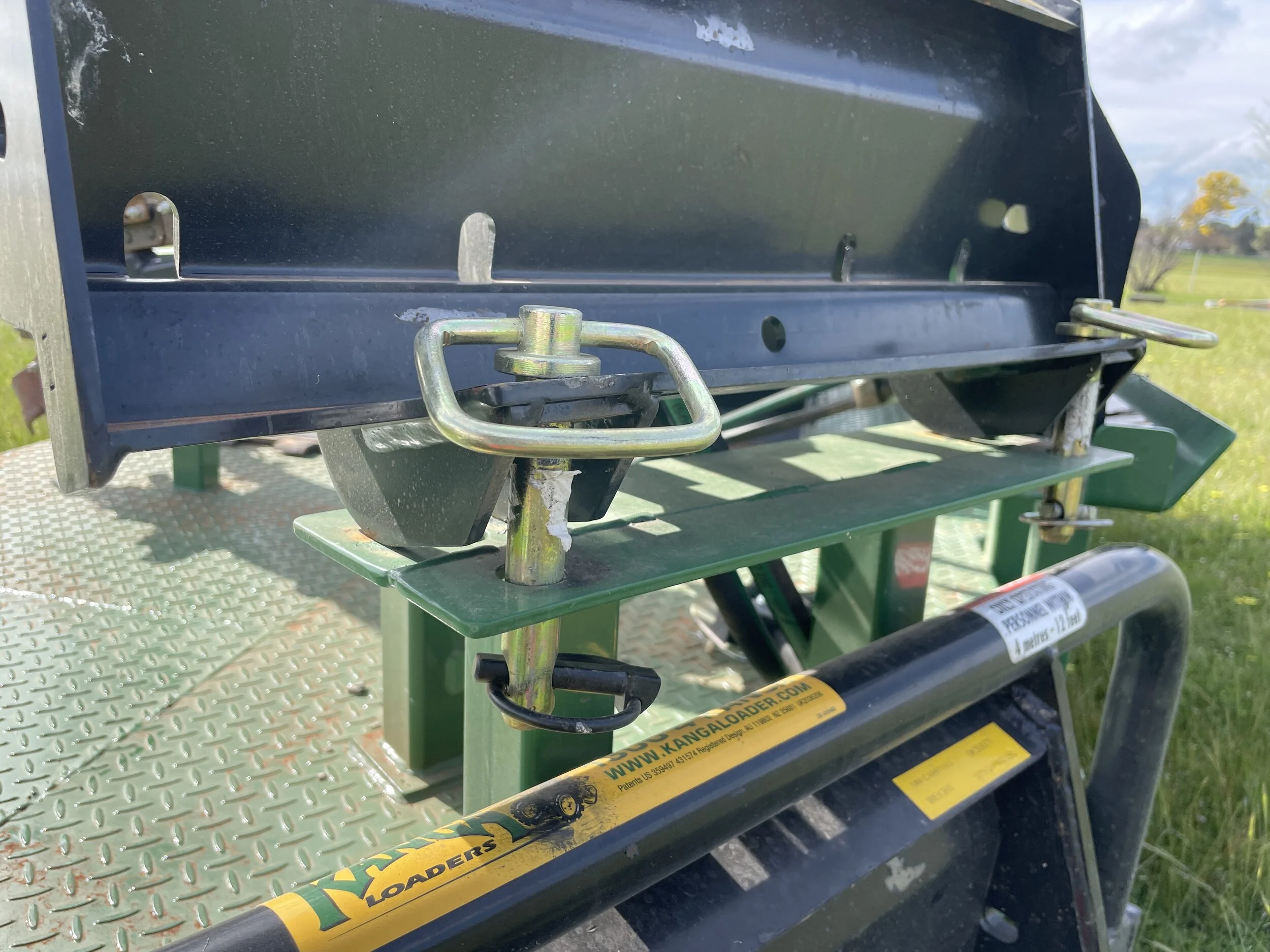

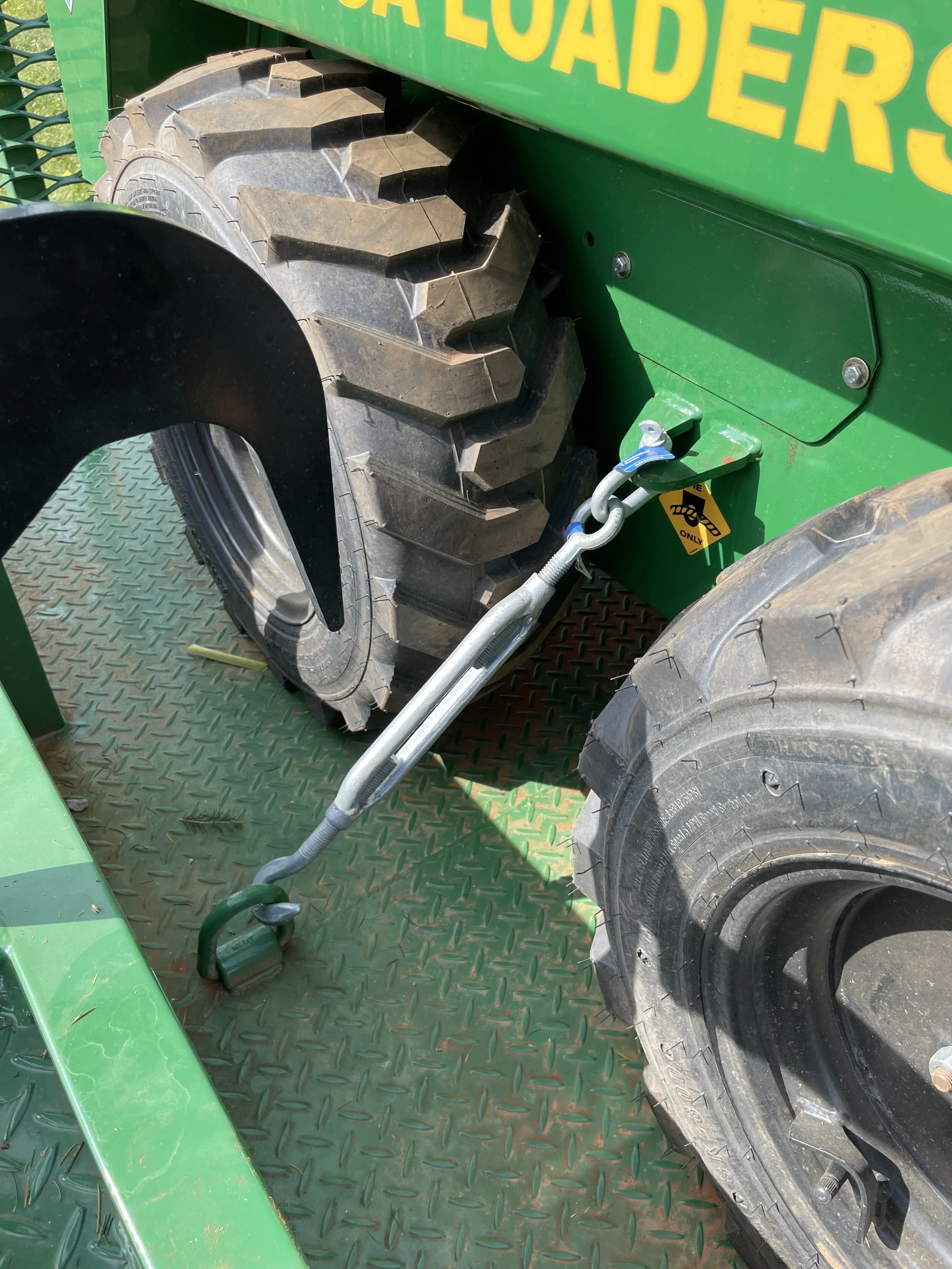

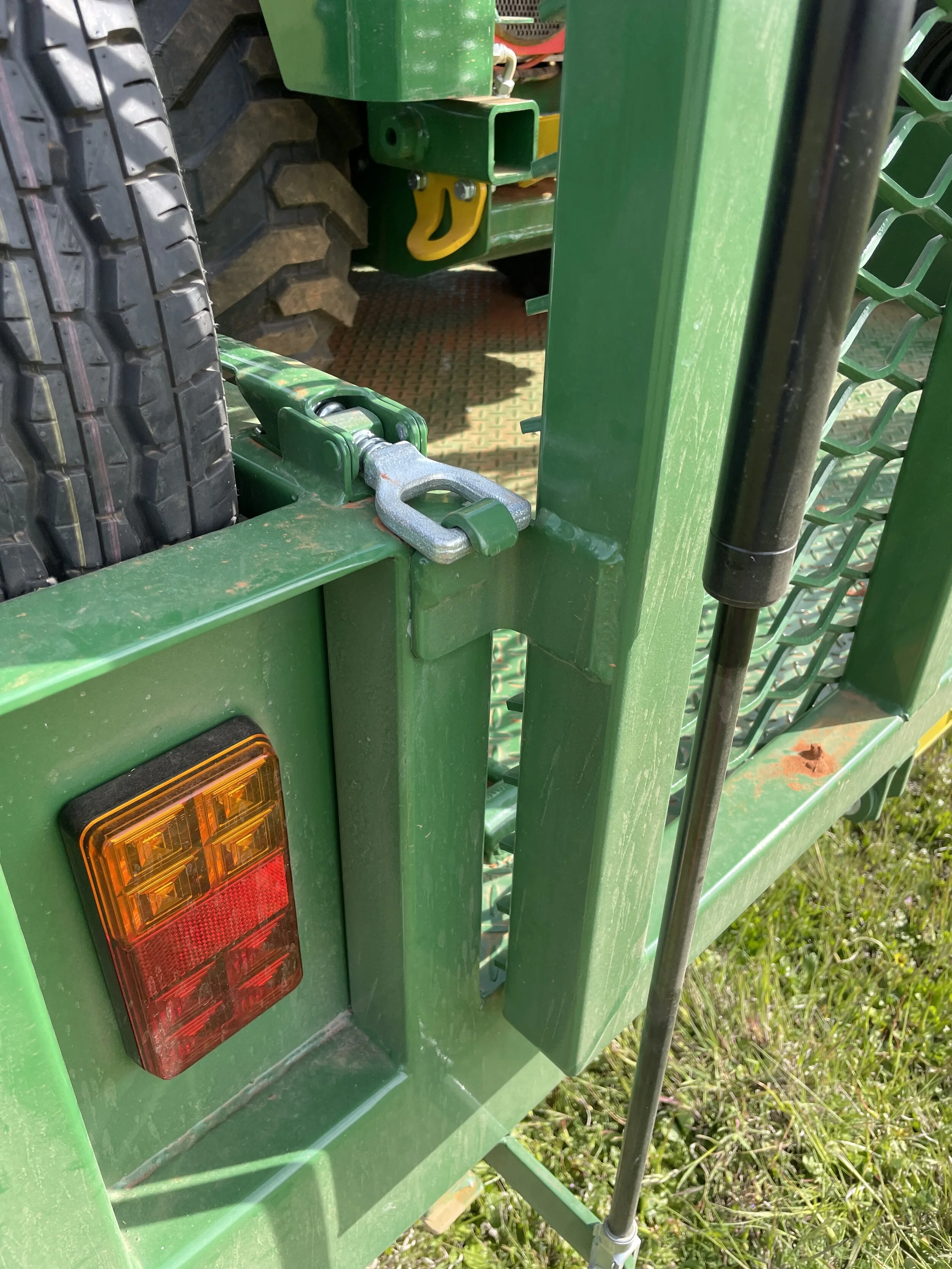

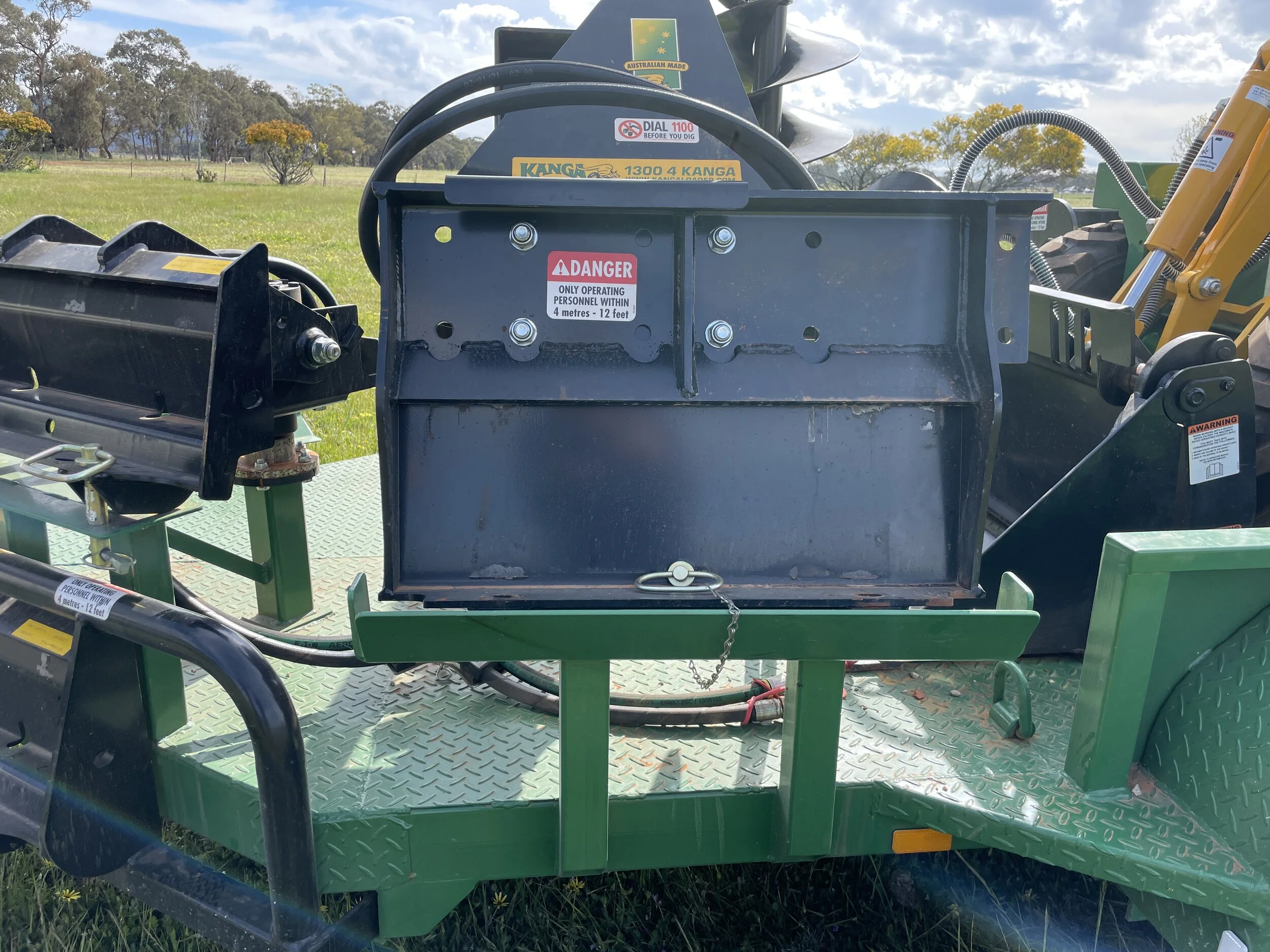

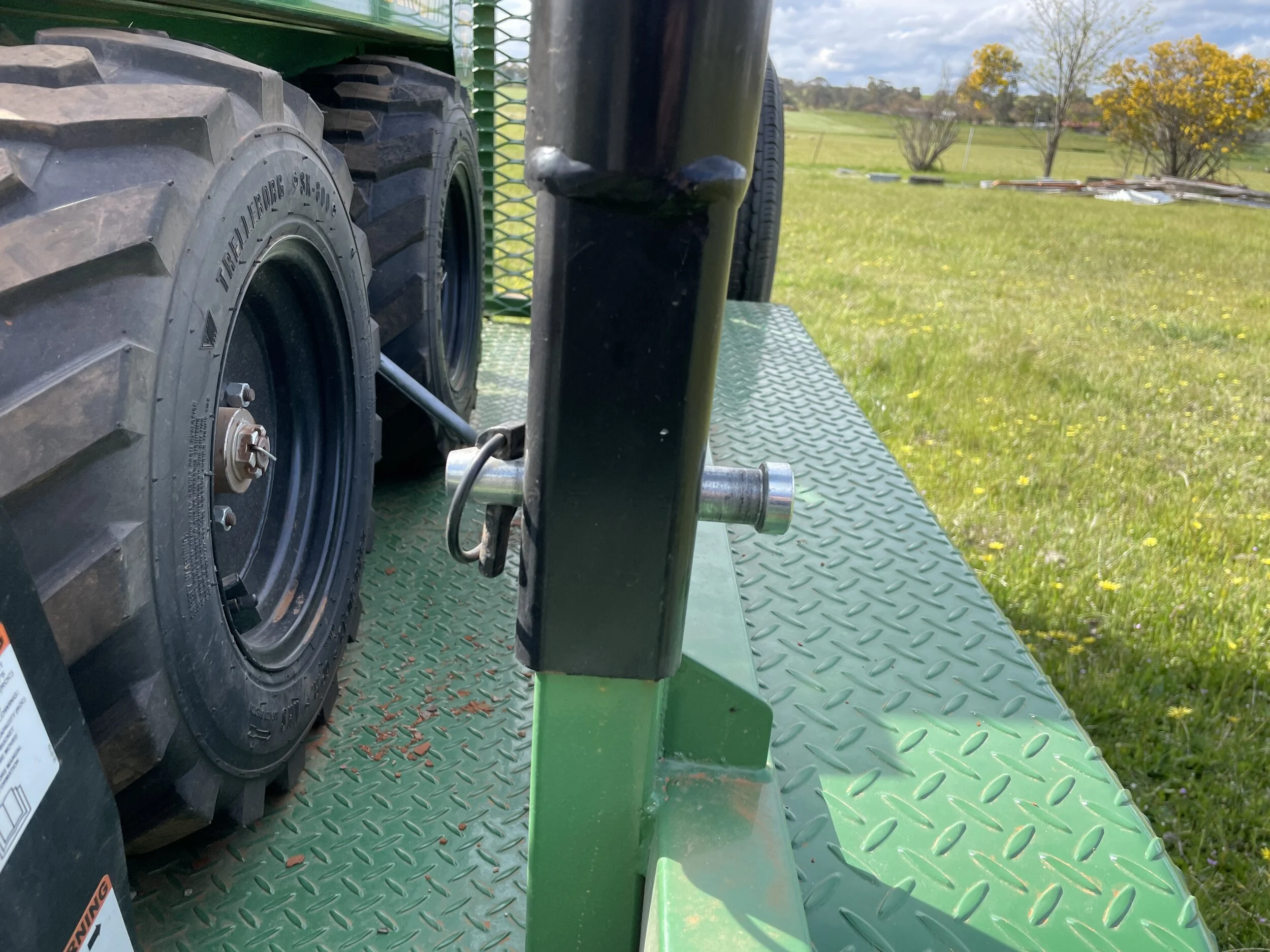

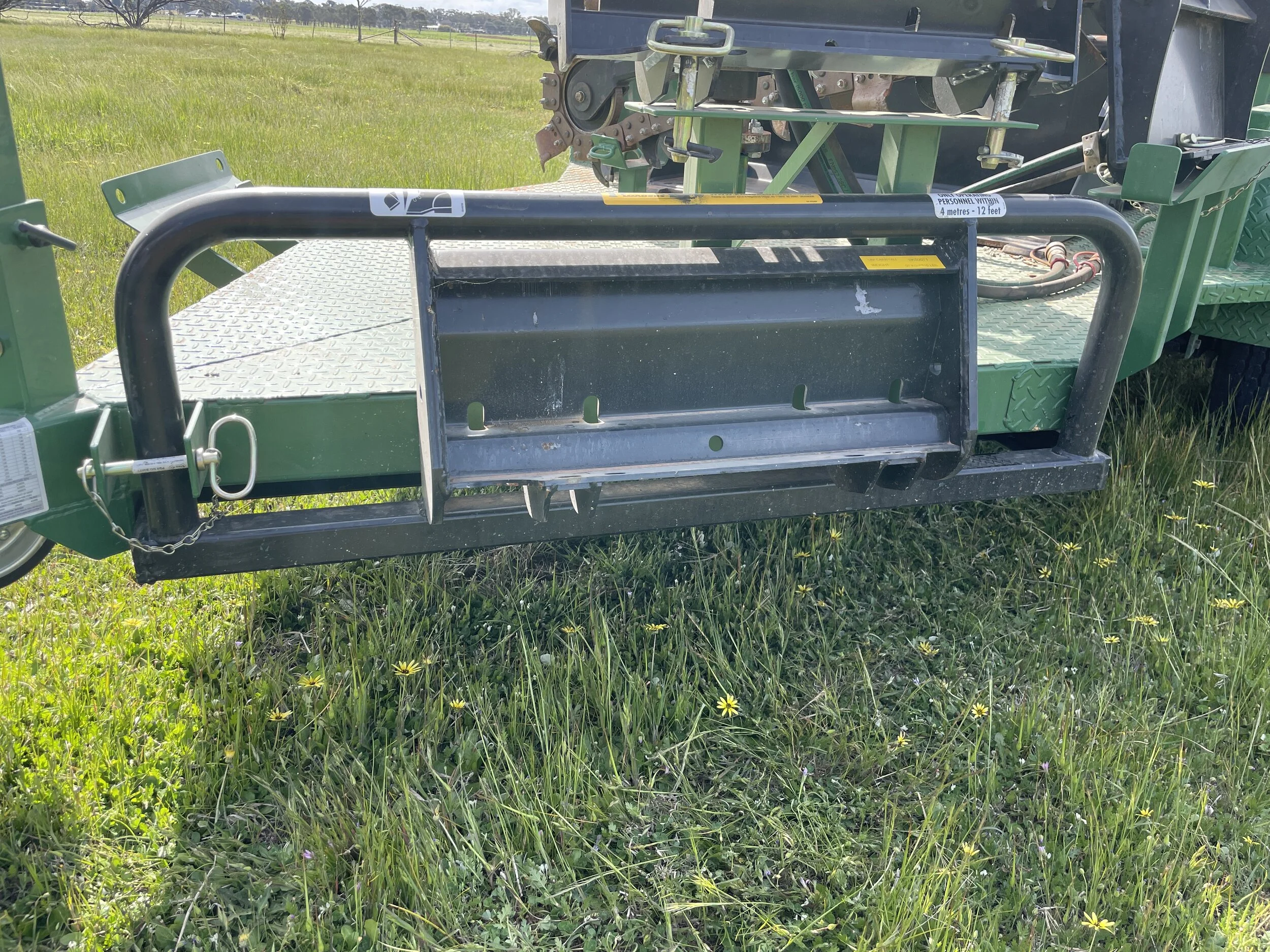

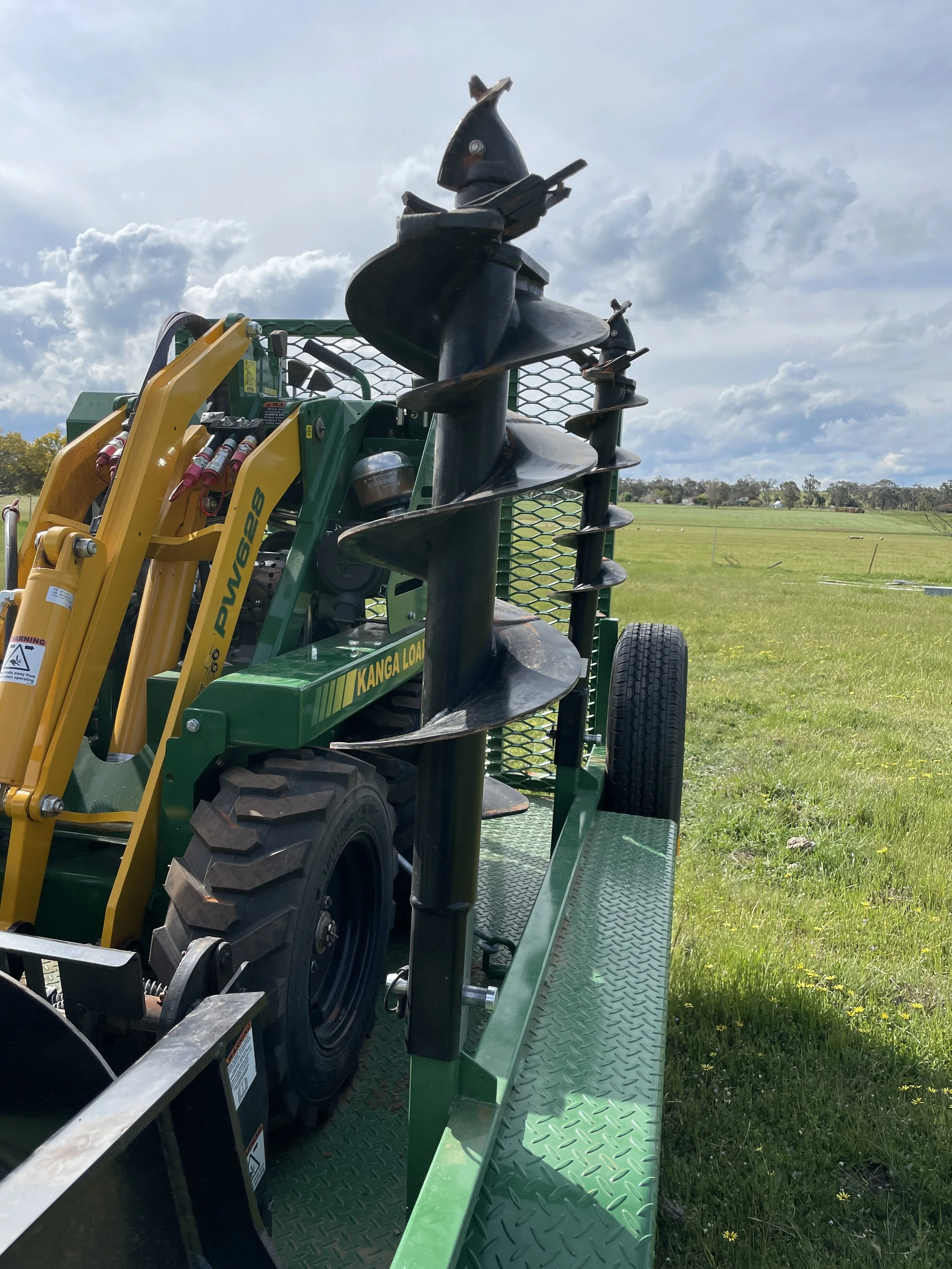

Below are pictures of the attachments and how they are fitted onto the trailer and locked into position, as well as how the KANGA is fastened to the trailer.
